Morimoto 4Banger LED Fog Lights - Ford Raptor (2017-2020)

Morimoto 4Banger LED Fog Lights - Ford Raptor (2017-2020)

Bundle_BAF024+BAF004+BAF005+BAF024H

Morimoto


https://argoob.com/web/image/product.template/4896/image_1920?unique=4508b08

    4,693.50 AED 4,693.50 AED 4693.5 AED

    4,470.00 AED

    VEHICLE FITMENT

    1
    2
    3

    AED 4693 4,694 AED 4,694 (Incl. VAT)

    This combination does not exist.

    ADD TO CART


    100% Original Parts

    Best Prices

    Secure Payments

    Easy Return

    PRODUCT DETAILS

    TECH SPECS

    • NCS WIDE WHITE: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
    • NCS COMBO YELLOW: 38,850 Cd (Post Warm-Up) (384lux @ 10m)
    • INPUT VOLTAGE: 9-18V DC
    • POWER: 20w (NCS)
    • CURRENT: 1.5A (NCS)
    • LIGHT SOURCE: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
    • INPUT: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
    • MATERIAL: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
    • IP RATING: IP68K (Dust / High Pressure Water Resistant)

    OFF-ROAD REINVENTED:

    Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. As a new player in the off-road game, we have embraced that philosophy big time, pumped up the Redbull intake, and now it's time for the old competition to rethink their strategy. The brand new, patent-pending line of 4Banger Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level.

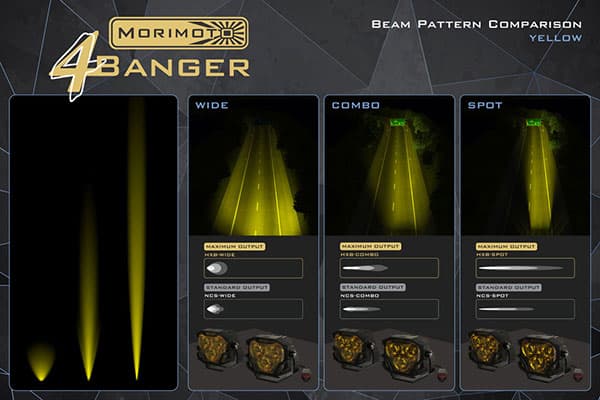

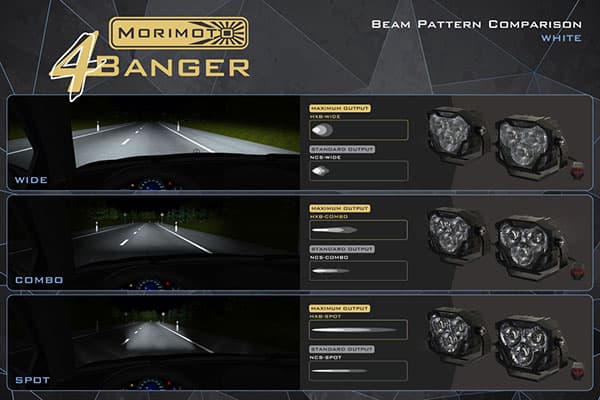

    NCS COMBO BEAM:

    Illuminates a clear path with medium range. The NCS Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The 8H x 4V oval hot spot with a 10V degree spread at beam center has been perfectly tuned to produce an ideal flood beam. The 4Banger NCS Combo is an excellent aid to any set of high-performance headlights.

    NCS WIDE BEAM:

    Illuminates the ground directly in front of the vehicle, making them a perfect complement to a set of high-performance Morimoto headlights. They produce a very wide beam to drastically improve visibility off to the sides of the road. Superior vertical gradient control eliminates glare to oncoming traffic, and when mounted in the fog light position and aimed appropriately. The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W) and has also been verified by Calcoast ITL to meet SAE F photometric standards for on-road use as a fog light.

    FORM MEETS FUNCTION:

    The overall footprint of the 4Banger is approximately 30% smaller than alternatives that offer comparable performance. This allows for an unbeatable OEM+ like fitment when paired with Morimoto's fog light or A-Pillar mounting kits, which are available for today's most popular trucks. Don't be that guy with LED pods bulging out of your bumper.

    PERFORMANCE:

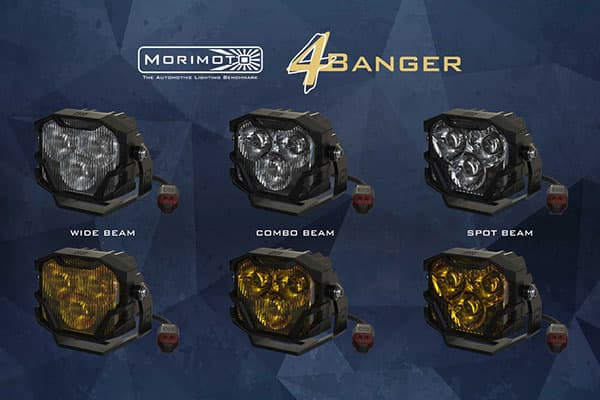

    There are no "off the shelf" guts inside of a fancy housing here. Every element of the 4Banger is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Nichia. Thermal dynamics have been optimized using SolidWorks. The 4Banger is available with three industry-leading beam patterns to suit every need. Wide/Fog, Spot, and Combo. Patent Pending Design.

    ALL WEATHER:

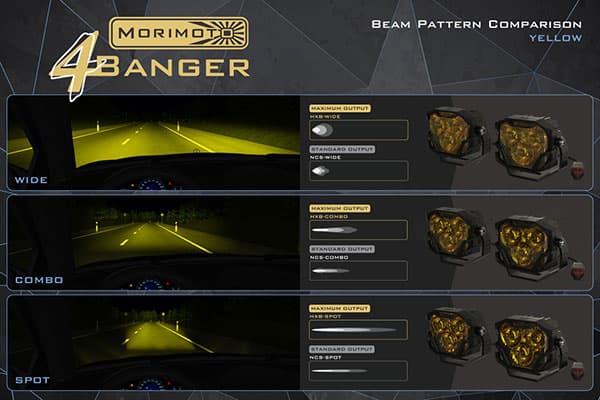

    The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).

    RELIABILITY:

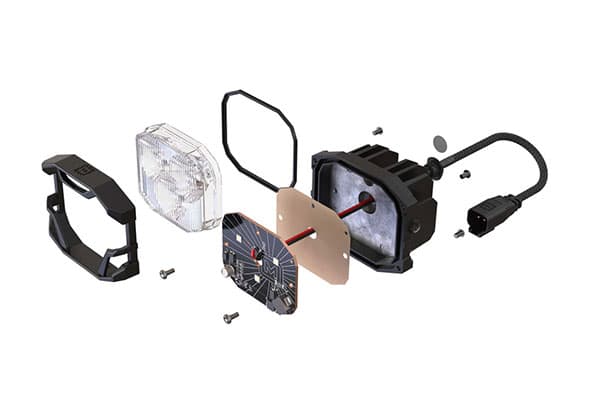

    With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance.

    STREET LEGALITY:

    With a standard -4 degree aimthe beam pattern produced by both the NCS and HXB Wide Beam models has been verified compliant with the latest SAE F regulation for use as a street-legal fog light. You can see the test data in the "Compatibility" section below.

    POWER UP:

    The Morimoto 4Banger LED Pod system for the Raptor was developed from the ground up to set a new standard in their segment, and the same goes for the wiring. Not one component on the harness in this kit was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relays with hanger. Proprietary over-molded inline fuse holder with 40A ATO fuse. Six DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Beefy 10 AWG Wiring. If you want the best, Bingo.

    MANUFACTURER DETAILS

    COMPATIBLE VEHICLES
    • 2017 Ford SVT Raptor
    • 2018 Ford SVT Raptor
    • 2019 Ford SVT Raptor
    • 2020 Ford SVT Raptor
    QUESTION & ANSWERS

    Lorem ipsum dolor sit amet, consectetur adipiscing elit. Praesent nisl lorem, dictum id pellentesque at, vestibulum ut arcu. Curabitur erat libero, egestas eu tincidunt ac, rutrum ac justo. Vivamus condimentum laoreet lectus, blandit posuere tortor aliquam vitae. Curabitur molestie eros.

    Lorem ipsum dolor sit amet, consectetur adipiscing elit. Praesent nisl lorem, dictum id pellentesque at, vestibulum ut arcu. Curabitur erat libero, egestas eu tincidunt ac, rutrum ac justo. Vivamus condimentum laoreet lectus, blandit posuere tortor aliquam vitae. Curabitur molestie eros.

    Lorem ipsum dolor sit amet, consectetur adipiscing elit. Praesent nisl lorem, dictum id pellentesque at, vestibulum ut arcu. Curabitur erat libero, egestas eu tincidunt ac, rutrum ac justo. Vivamus condimentum laoreet lectus, blandit posuere tortor aliquam vitae. Curabitur molestie eros.

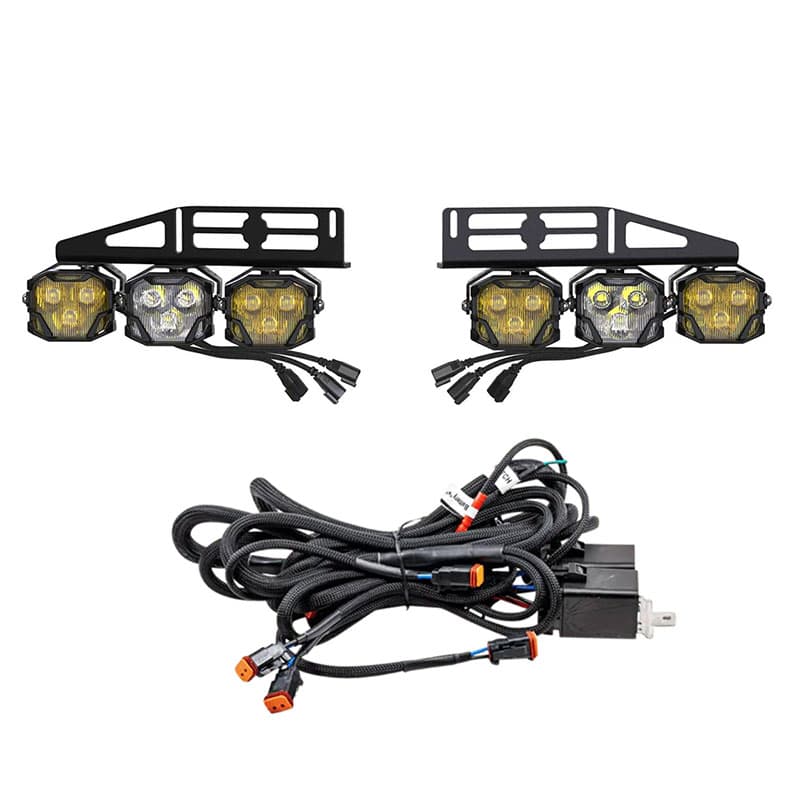

    PARTS INCLUDED

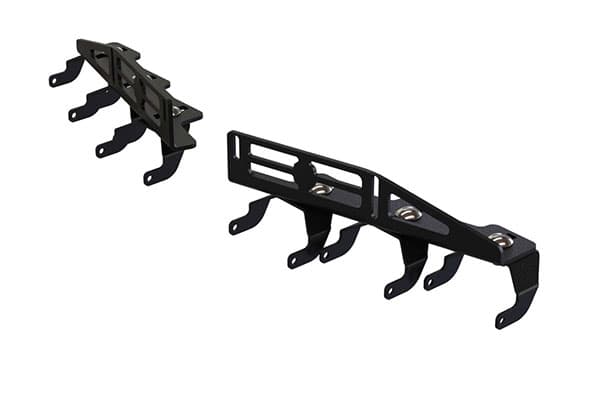

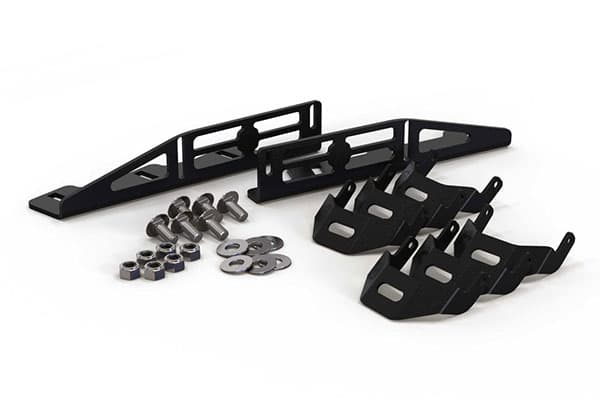

    • [BAF024] Morimoto 4Banger Triple Fog Light Mounting Brackets - Ford Raptor (2017-2020)
    • [BAF004] Morimoto 4Banger NCS Combo LED Light Pods (Yellow) - Universal
    • [BAF005] Morimoto 4Banger NCS SAE Wide LED Light Pods (White) - Universal
    • [BAF024H] Morimoto 6-Output Switched Power Wiring Harness - Universal
