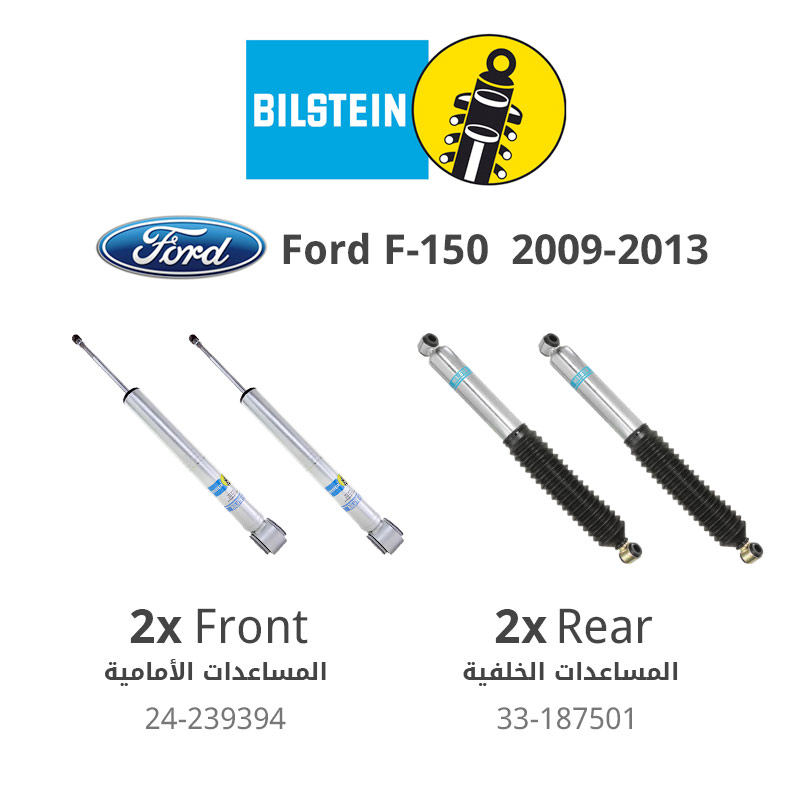

Bilstein Front + Rear 5100 Series Shocks - Ford F-150 ( 2009 - 2013 )

Bilstein Front + Rear 5100 Series Shocks - Ford F-150 ( 2009 - 2013 )

bundle_24-239394+33-187501

Bilstein
Bilstein Shock Absorber Front + Rear bundle Front Shocks: 24-239394 Rear Shocks: 33-187501
https://argoob.com/web/image/product.template/1137/image_1920?unique=9a3b8ac

    2,016.00 AED 2,016.00 AED 2016.0 AED

    1,920.00 AED

    VEHICLE FITMENT

    1
    2
    3

    AED 2016 2,016 AED 2,016 (Incl. VAT)

    This combination does not exist.

    ADD TO CART

    <div class="videoWrapper"><iframe width="560" height="315" src="\/\/www.youtube.com\/embed\/Ngi4qktL1Vs" frameborder="0" allowfullscreen><\/iframe><\/div>
    <h3>Front Shock Absorber<\/h3>
    <p>Bilstein's 5100 Series Ride Height Adjustable Shocks are Zinc-plated shocks that install like factory replacement shocks and are designed to correct the factory nose-down rake, allowing for the use of larger wheels and tires. The OEM spring seat is repositioned to provide more preload to the factory spring. The result is a level front to rear ride height. <\/p><p>Features include: Monotube gas pressure construction, Extremely affordable, Snap ring grooves on shock body provide up to 2.75" of front end lift (depending on application), More practical than strut extension or spring pre-load spacer kits, Offers increased wheel travel while accommodating a 33" tire, Application specific design available for many popular light trucks and SUVs.<\/p>
    <p><h3>Technical Details<\/h3><\/p>
    <ul>
    <li>Bilstein 5100 Series Ride Height Adjustable Shock Absorber <\/li>
    <li>Collapsed Length (IN): 16.93<\/li>
    <li>Extended Length (IN): 21.83<\/li>
    <li>Travel Length (IN): 4.9<\/li>
    <li>Lower Mount: Eye 20.3mm<\/li>
    <li>Shaft Diameter: 14mm<\/li>
    <li>Reservoir: No<\/li>
    <li>Finish: Zinc plated<\/li>
    <li>Body Design: 46mm ID snap ring grooved body (Coilover)<\/li>
    <li>Internal Design: Mono tube<\/li>
    <li>Boot Included: No<\/li>
    <\/ul>
    <h3>Rear Shock Absorber<\/h3>
    <p>Bilstein\u2019s 5100 Series Shocks offer traditional Bilstein technology with applications for lifted trucks, Jeeps and prerunners. 5100 Series shocks feature Bilstein's superior single tube high gas pressure design for the upmost in consistent fade-free performance and long life.<\/p><p> Features include:Monotube gas pressure construction, Self-Adjusting Deflecting Disc Valving, High-Flow Piston Reduces Harshness, Independent Rebound & Compression Tuning, Larger Working Piston Area for Exact Damping, Superior Control for Large Diameter Tires and Designed for specific manufacturer lift kits utilizing the stock O.E.M. mounting configuration.<\/p>
    <ul>
    <h3><p>Technical Details<\/h3><\/p>
    <li>Bilstein 5100 Series Shock Absorber <\/li>
    <li>Collapsed Length (IN): 17.68<\/li>
    <li>Extended Length (IN): 28.9<\/li>
    <li>Travel Length (IN): 11.22<\/li>
    <li>Lower Mount: Eye 12mm<\/li>
    <li>Upper Mount: Eye 12mm<\/li>
    <li>Shaft Diameter: 14mm<\/li>
    <li>Reservoir: No<\/li>
    <li>Finish: Zinc plated<\/li>
    <li>Body Design: 46mm ID smooth body (Non-coilover)<\/li>
    <li>Internal Design: Mono tube<\/li>
    <li>Boot Included: Yes<\/li>
    <\/ul>


    100% Original Parts

    Best Prices

    Secure Payments

    Easy Return

    PRODUCT DETAILS

    Front Shock Absorber

    Bilstein's 5100 Series Ride Height Adjustable Shocks are Zinc-plated shocks that install like factory replacement shocks and are designed to correct the factory nose-down rake, allowing for the use of larger wheels and tires. The OEM spring seat is repositioned to provide more preload to the factory spring. The result is a level front to rear ride height.

    Features include: Monotube gas pressure construction, Extremely affordable, Snap ring grooves on shock body provide up to 2.75" of front end lift (depending on application), More practical than strut extension or spring pre-load spacer kits, Offers increased wheel travel while accommodating a 33" tire, Application specific design available for many popular light trucks and SUVs.

    Technical Details

    • Bilstein 5100 Series Ride Height Adjustable Shock Absorber
    • Collapsed Length (IN): 16.93
    • Extended Length (IN): 21.83
    • Travel Length (IN): 4.9
    • Lower Mount: Eye 20.3mm
    • Shaft Diameter: 14mm
    • Reservoir: No
    • Finish: Zinc plated
    • Body Design: 46mm ID snap ring grooved body (Coilover)
    • Internal Design: Mono tube
    • Boot Included: No

    Rear Shock Absorber

    Bilstein\u2019s 5100 Series Shocks offer traditional Bilstein technology with applications for lifted trucks, Jeeps and prerunners. 5100 Series shocks feature Bilstein's superior single tube high gas pressure design for the upmost in consistent fade-free performance and long life.

    Features include:Monotube gas pressure construction, Self-Adjusting Deflecting Disc Valving, High-Flow Piston Reduces Harshness, Independent Rebound & Compression Tuning, Larger Working Piston Area for Exact Damping, Superior Control for Large Diameter Tires and Designed for specific manufacturer lift kits utilizing the stock O.E.M. mounting configuration.

      Technical Details

    • Bilstein 5100 Series Shock Absorber
    • Collapsed Length (IN): 17.68
    • Extended Length (IN): 28.9
    • Travel Length (IN): 11.22
    • Lower Mount: Eye 12mm
    • Upper Mount: Eye 12mm
    • Shaft Diameter: 14mm
    • Reservoir: No
    • Finish: Zinc plated
    • Body Design: 46mm ID smooth body (Non-coilover)
    • Internal Design: Mono tube
    • Boot Included: Yes

    MANUFACTURER DETAILS

    COMPATIBLE VEHICLES
    • 2009 Ford F-150
    • 2010 Ford F-150
    • 2011 Ford F-150
    • 2012 Ford F-150
    • 2013 Ford F-150
    QUESTION & ANSWERS

    Lorem ipsum dolor sit amet, consectetur adipiscing elit. Praesent nisl lorem, dictum id pellentesque at, vestibulum ut arcu. Curabitur erat libero, egestas eu tincidunt ac, rutrum ac justo. Vivamus condimentum laoreet lectus, blandit posuere tortor aliquam vitae. Curabitur molestie eros.

    Lorem ipsum dolor sit amet, consectetur adipiscing elit. Praesent nisl lorem, dictum id pellentesque at, vestibulum ut arcu. Curabitur erat libero, egestas eu tincidunt ac, rutrum ac justo. Vivamus condimentum laoreet lectus, blandit posuere tortor aliquam vitae. Curabitur molestie eros.

    Lorem ipsum dolor sit amet, consectetur adipiscing elit. Praesent nisl lorem, dictum id pellentesque at, vestibulum ut arcu. Curabitur erat libero, egestas eu tincidunt ac, rutrum ac justo. Vivamus condimentum laoreet lectus, blandit posuere tortor aliquam vitae. Curabitur molestie eros.

    PARTS INCLUDED
    • [24-239394] BILSTEIN 5100 Series Front Shock Absorber - FORD F-150
    • [33-187501] BILSTEIN 5100 Series Shock Absorber - Rear - FORD-F150
