(2007-2018) بويزن سبايدر - دواسات خارجية لحماية هيكل المركبة – جيب رانجلر 4 ابواب
(2007-2018) بويزن سبايدر - دواسات خارجية لحماية هيكل المركبة – جيب رانجلر 4 ابواب

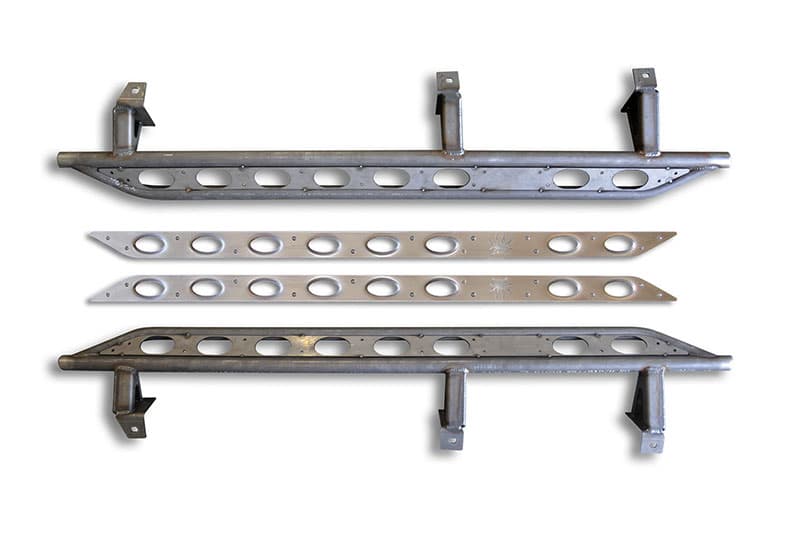

<p>The most vulnerable areas on the body of the Jeep JK are the rocker panels. Poison Spyder Rocker Knockers protect your JKs rocker panel area while enabling you to slide over rocks and obstacles. Rocker Knockers enhance your Jeeps trail performance while adding rugged off-road looks to your JK. These Frame-Mounted Rocker Knockers are identical to our Body-Mounted version, except in how they mount. Which one is best for you will depend on how you intend to use your Jeep! The tubular rocker rail is rugged 1.75" X .120 wall DOM structural tubing. The slider rail is fabricated from CNC-bent 1.5" X .120 wall DOM tubing. The space between the Slider and the main tube of the Rocker Knocker is filled with a 3\/16" thick CNC laser-cut steel base plate for the removable slider skid. The slider and skid mount at an angle to the main tube of the Rocker Knocker to provide boatside-like protection from the rocks while keeping the Jeeps doors and body a safe distance from higher level trail hazards. The removable slider skid features Poison Spyders exclusive oval dimples for structural strength as well as great Poison Spyder looks. The Skid attaches with countersunk stainless steel flat head cap screws for a flush surface. The outer skid is made of 1\/8" steel and is secured to a 3\/16" base plate welded into the slider hoop assembly. The Slider does not rely on the skid for structure. The advantage of having the ability to remove the skid, is to allow you to replace it if it becomes damaged to a level that it has lost its aesthetic appearance or functionality. Also you will be able to customize the Sliders color to match your Jeeps body color, or any color you choose. Frame-Mounted Rocker Knockers attach to your Jeeps frame rails through three rugged, precision engineered outriggers on each side. The outriggers are fabricated of CNC laser cut 3\/16" thick plate steel, and are designed in a triangular shape to act as their own gusset and provide superior strength. The outrigger wraps around the bottom and side of the frame rail for support on two planes. The outriggers are also located so they may be directly bolted to the sides of the Jeeps body mounts for even more strength. Compare this design to competitors' frame-mounted sliders that use a simple piece of non-triangulated, non-gusseted tubing welded to a plate that attaches to the side of the Jeeps frame rail. Instructions and hardware are provided for a fairly easy bolt-on installation of the Frame-Mounted Rocker Knockers. The procedure uses some existing mounting holes on your Jeeps frame, but does require some additional drilling and tapping. We provide the necessary tap to thread the additional holes (tap-handle not included). Alternatively, installers may choose to weld the Rocker Knockers in place. Please note, however, that reaching the nuts on the back-side of the slider plate for installation of the removable skid will be more difficult with the Rocker Knockers already in place. We recommend testing the skid removal process with the Rocker Knockers bolted into place, before permanently welding them on.<\/p>
<h3>Features<\/h3>
<ul>
<li>CNC laser cut from 3\/16 inch plate steel<\/li>
<li>Slider rail is fabricated from CNC-bent 1.5 inch x .120 wall DOM tubing<\/li>
<li>Main tube of the rocker knocker is filled with a CNC laser-cut slider skid<\/li>
<li>Features poison spyders exclusive oval dimples for structural strength<\/li>
<li>Slider and skid mount at an angle to the main tube of the rocker knocker to provide boatside-like protection from the rocks<\/li>
<li>Fitment:Direct Fit<\/li>
<li>Finish:Bare Steel<\/li>
<li>Type:Formed Plate Guard with Tubular Standoff<\/li>
<li>Installation Type:Cutting or Drilling Required<\/li>
<\/ul>
100% Original Parts
Best Prices
Secure Payments
Easy Return
PRODUCT DETAILS
The most vulnerable areas on the body of the Jeep JK are the rocker panels. Poison Spyder Rocker Knockers protect your JKs rocker panel area while enabling you to slide over rocks and obstacles. Rocker Knockers enhance your Jeeps trail performance while adding rugged off-road looks to your JK. These Frame-Mounted Rocker Knockers are identical to our Body-Mounted version, except in how they mount. Which one is best for you will depend on how you intend to use your Jeep! The tubular rocker rail is rugged 1.75" X .120 wall DOM structural tubing. The slider rail is fabricated from CNC-bent 1.5" X .120 wall DOM tubing. The space between the Slider and the main tube of the Rocker Knocker is filled with a 3/16" thick CNC laser-cut steel base plate for the removable slider skid. The slider and skid mount at an angle to the main tube of the Rocker Knocker to provide boatside-like protection from the rocks while keeping the Jeeps doors and body a safe distance from higher level trail hazards. The removable slider skid features Poison Spyders exclusive oval dimples for structural strength as well as great Poison Spyder looks. The Skid attaches with countersunk stainless steel flat head cap screws for a flush surface. The outer skid is made of 1/8" steel and is secured to a 3/16" base plate welded into the slider hoop assembly. The Slider does not rely on the skid for structure. The advantage of having the ability to remove the skid, is to allow you to replace it if it becomes damaged to a level that it has lost its aesthetic appearance or functionality. Also you will be able to customize the Sliders color to match your Jeeps body color, or any color you choose. Frame-Mounted Rocker Knockers attach to your Jeeps frame rails through three rugged, precision engineered outriggers on each side. The outriggers are fabricated of CNC laser cut 3/16" thick plate steel, and are designed in a triangular shape to act as their own gusset and provide superior strength. The outrigger wraps around the bottom and side of the frame rail for support on two planes. The outriggers are also located so they may be directly bolted to the sides of the Jeeps body mounts for even more strength. Compare this design to competitors' frame-mounted sliders that use a simple piece of non-triangulated, non-gusseted tubing welded to a plate that attaches to the side of the Jeeps frame rail. Instructions and hardware are provided for a fairly easy bolt-on installation of the Frame-Mounted Rocker Knockers. The procedure uses some existing mounting holes on your Jeeps frame, but does require some additional drilling and tapping. We provide the necessary tap to thread the additional holes (tap-handle not included). Alternatively, installers may choose to weld the Rocker Knockers in place. Please note, however, that reaching the nuts on the back-side of the slider plate for installation of the removable skid will be more difficult with the Rocker Knockers already in place. We recommend testing the skid removal process with the Rocker Knockers bolted into place, before permanently welding them on.
Features
- CNC laser cut from 3/16 inch plate steel
- Slider rail is fabricated from CNC-bent 1.5 inch x .120 wall DOM tubing
- Main tube of the rocker knocker is filled with a CNC laser-cut slider skid
- Features poison spyders exclusive oval dimples for structural strength
- Slider and skid mount at an angle to the main tube of the rocker knocker to provide boatside-like protection from the rocks
- Fitment:Direct Fit
- Finish:Bare Steel
- Type:Formed Plate Guard with Tubular Standoff
- Installation Type:Cutting or Drilling Required
MANUFACTURER DETAILS
COMPATIBLE VEHICLES
- 2007 جيب رانجلر أربع أبواب
- 2008 جيب رانجلر أربع أبواب
- 2009 جيب رانجلر أربع أبواب
- 2010 جيب رانجلر أربع أبواب
- 2011 جيب رانجلر أربع أبواب
- 2012 جيب رانجلر أربع أبواب
- 2013 جيب رانجلر أربع أبواب
- 2014 جيب رانجلر أربع أبواب
- 2015 جيب رانجلر أربع أبواب
- 2016 جيب رانجلر أربع أبواب
- 2017 جيب رانجلر أربع أبواب
- 2018 جيب رانجلر أربع أبواب
