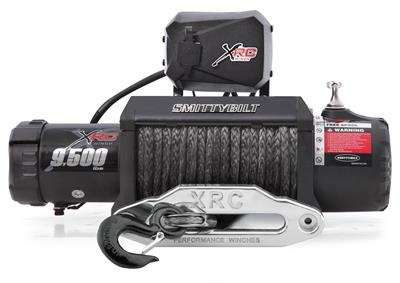

Smittybilt XRC-9.5K Waterproof Synthetic Rope GEN2 With Aluminum Fairlead - Universal
S/B98495
Smittybilt
The new Smittybilt XRC winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranging from 9,500lb to 17,500 lbs capacities, Smittybilt's XRC Series winches can handle any situation you can get into.
<p>The new Smittybilt XRC winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranging from 9,500lb to 17,500 lbs capacities, Smittybilt's XRC Series winches can handle any situation you can get into. Every XRC winch features a Series Wound 6.6 HP motor and a 3-Stage Planetary Gear System with revised gear ratios for increased pulling power and lightning-fast line speeds.<\/p>
<p><\/p>

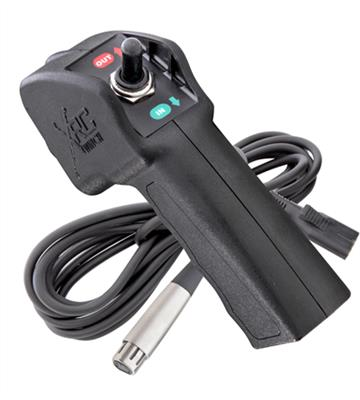

<p>Every winch is finished in a rugged UV-Resistant matte black coating with stainless steel hardware and oversized aluminum crossbars to provide you with a great looking system that will last you a lifetime. Every XRC winch includes a heavy duty winch controller, four-way roller fairlead, forged steel tow hook, and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you're looking for a winch equipped with a synthetic winch rope, look to the XRC Comp Series for the ultimate in pulling power and performance. A Smittybilt XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation.<\/p>
<p><\/p>
<h3>Technical Details<\/h3>
<ul>
<li>Waterproofing: IP67 Rating<\/li>
<li>Fairlead: Hawse<\/li>
<li>Rated Line Pull: 9,500Lbs (4,309kgs) single-line<\/li>
<li>Remote Control: Included<\/li>
<li>Motor: 6.6hp Series Wound<\/li>
<li>Recommended Battery: 650CCA Minimum for Winching<\/li>
<li>Control: Remote Switch, 12\u2019 (3.7m) lead<\/li>
<li>Battery Leads: 25mm, 72" (1.83m)<\/li>
<li>Gear Train: 3-Stage Planetary<\/li>
<li>Gear Ratio: 161.28:1<\/li>
<li>Finish: Textured Black<\/li>
<li>Weight: 46.0 lbs (20.9 k)<\/li>
<li>Clutch: Sliding Ring Gear Mounting<\/li>
<li>Bolt Pattern: 10.0 " x 4.5 "<\/li>
<li>Brake: Automatic In-Drum<\/li>
<li>Overall Dimensions (L x W x H): 22.3" x 5.4" x 9.4"<\/li>
<li>Drum Size: Diameter 2.5"<\/li>
<li>Cable type: Synthetic Rope<\/li>
<li>Cable: 98.5\u2019 3\/8\u201d Diameter<\/li>
<\/ul>
Winch Cable Type:
Synthetic Rope
Winch Capacity:
9.5K
100% Original Parts
Best Prices
Secure Payments
Easy Return
PRODUCT DETAILS
The new Smittybilt XRC winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranging from 9,500lb to 17,500 lbs capacities, Smittybilt's XRC Series winches can handle any situation you can get into. Every XRC winch features a Series Wound 6.6 HP motor and a 3-Stage Planetary Gear System with revised gear ratios for increased pulling power and lightning-fast line speeds.
Every winch is finished in a rugged UV-Resistant matte black coating with stainless steel hardware and oversized aluminum crossbars to provide you with a great looking system that will last you a lifetime. Every XRC winch includes a heavy duty winch controller, four-way roller fairlead, forged steel tow hook, and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you're looking for a winch equipped with a synthetic winch rope, look to the XRC Comp Series for the ultimate in pulling power and performance. A Smittybilt XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation.
Technical Details
- Waterproofing: IP67 Rating
- Fairlead: Hawse
- Rated Line Pull: 9,500Lbs (4,309kgs) single-line
- Remote Control: Included
- Motor: 6.6hp Series Wound
- Recommended Battery: 650CCA Minimum for Winching
- Control: Remote Switch, 12\u2019 (3.7m) lead
- Battery Leads: 25mm, 72" (1.83m)
- Gear Train: 3-Stage Planetary
- Gear Ratio: 161.28:1
- Finish: Textured Black
- Weight: 46.0 lbs (20.9 k)
- Clutch: Sliding Ring Gear Mounting
- Bolt Pattern: 10.0 " x 4.5 "
- Brake: Automatic In-Drum
- Overall Dimensions (L x W x H): 22.3" x 5.4" x 9.4"
- Drum Size: Diameter 2.5"
- Cable type: Synthetic Rope
- Cable: 98.5\u2019 3/8\u201d Diameter
Specifications for Smittybilt XRC-9.5K Waterproof Synthetic Rope GEN2 With Aluminum Fairlead - Universal
Winch Cable Type | Synthetic Rope |
Winch Capacity | 9.5K |
